PRAISE THE LIGHT:
Orca isn’t just light. It is 6.7kg of climbing technology designed to change how you reach the top. The feeling of a bike this light and efficient is unbeatable, and this instant acceleration, vibration absorption and responsive handling come from a frame which knows where it needs to be light and where it needs to be stiff.

POWERSPINE:
The lower spine of the frame handles the large majority of torsional and lateral loads.

ICR PLUS:
Internal Cable Routing is carefully guided along the best path under the stem and through the head tube, with no rub or rattle, and is optimized for both traditional and electronic shifting systems.

32mm TYRE CLEARANCE:
Modern road riders have discovered the advantages of bigger tyres on rougher surfaces.

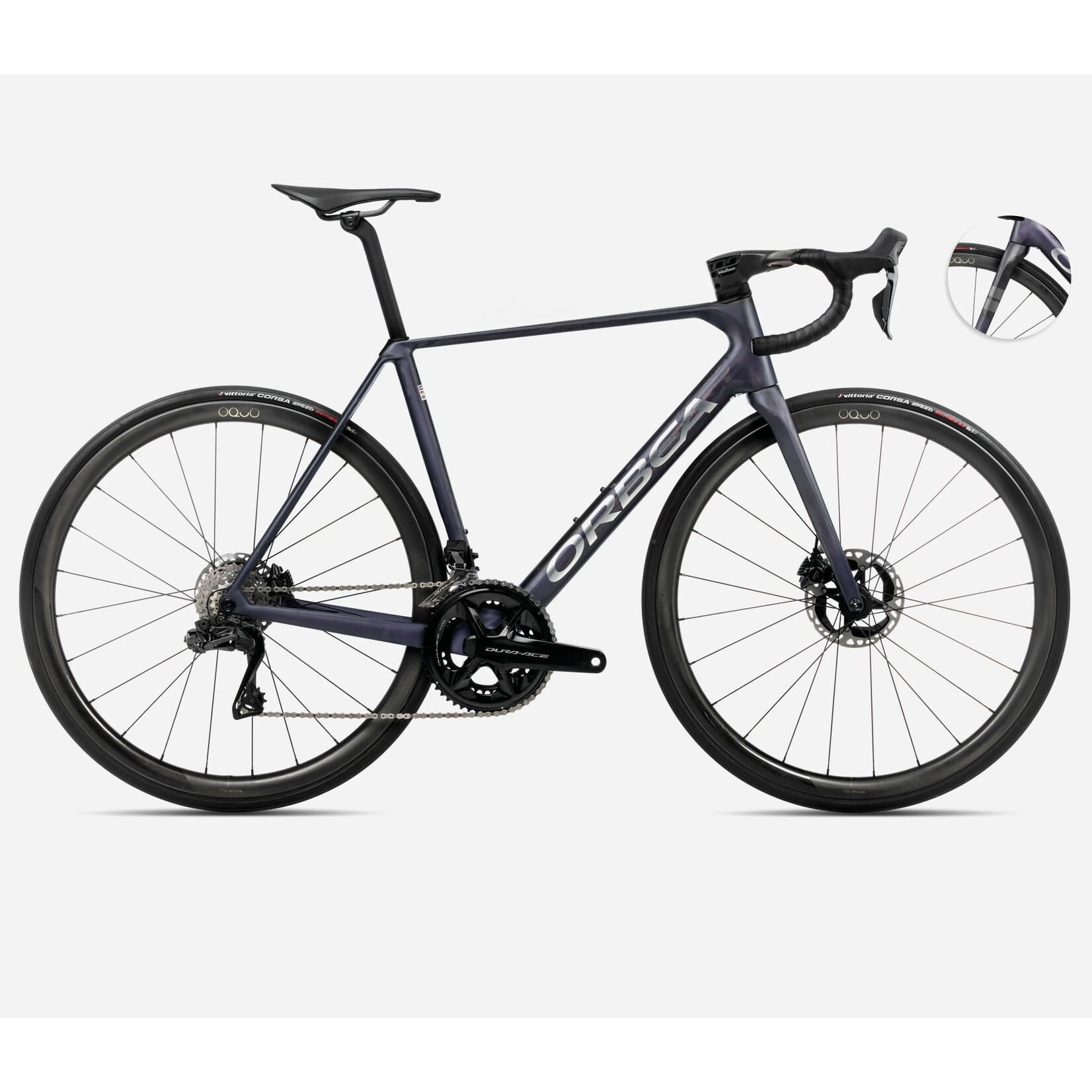

Orbea Orca M10i LTD PWR Key Features:

• Orca Carbon OMR Frame
• Orca OMR ICR Carbon Fork
• Shimano Dura-Ace Di2 Drivetrain
• Shimano R9270 Hydraulic Disc Brake

FRAME: Orbea Orca carbon OMX 2024, monocoque construction, HS 1,5", BB 386mm, powermeter compatible, Rear Thru Axle 12x142mm, thread M12x2 P1, internal cable routing.

FORK: Orbea Orca OMX ICR 2024, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12x2 P1.

HEADSET: FSA 1-1/2" Integrated Aluminium Cup

CRANKSET: Shimano Dura-Ace R9200-P Powermeter 36x52t

SHIFTERS: Shimano R9270

CASSETTE: Shimano Dura-Ace R9200 11-30t 12-Speed

REAR DERAILLEUR: Shimano Dura-Ace Di2 R9250

FRONT DERAILLEUR: Shimano Dura-Ace Di2 R9250

CHAIN: Shimano CN-9100

HANDLEBAR: OC Road Performance RP11 Carbon, Reach 80, Drop 125, w/Di2 hole

STEM: OC Road Performance RP10, -8º

BRAKES: Shimano R9270 Hydraulic Disc

ROTORS: 160mm Front /140mm Rear

WHEELS: Oquo Road Performance RP35LTD

TYRES: Vittoria Corsa Speed G2.0 TLR 700x25c

FRONT WHEEL AXLE: Orbea Thru Axle 12x100mm M12x2 P1 Lite

REAR WHEEL AXLE: Orbea Thru Axle 12x142mm M12x2 P1 Lite

SEATPOST: OC Performance XP10-S Carbon, 27.2mm, Setback 20

SADDLE: Fizik Vento Antares R1 Carbon Rail 140mm

HANDLEBAR TAPE: Lyzard DSP 2.5mm
